Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling

Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling
Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling

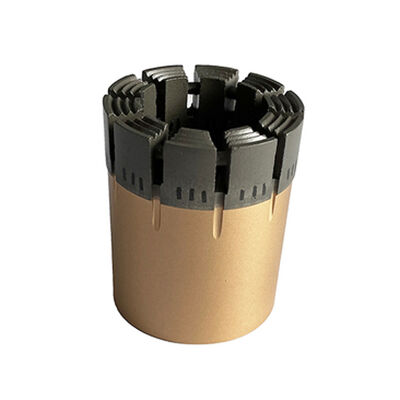

Imagem Grande :  Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling

Detalhes do produto:
Certificação: ISO
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1
Preço: 50
Contato

Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling

descrição
Modelo NÃO.: HQ3 Modelo: BQ BQ3 NQ NQ2 NQ3 HQ HQ3 PQ PQ3
Material: diamante Usar: Exploração geotécnica/mineração
Arte Manufatureira: Sedimento Tipos: bocado de núcleo do diamante
Função: Perfuração de núcleo de rocha Tipo de máquina: Equipamento de perfuração
Dureza: F1-F12 Indústria: Serviço Geológico
Superfície: Acabamento suave Nome do produto: Bit de diamante impregnado
Tipo de rocha: Barro, arenito duro, sienita, quartzita, etc. Altura da coroa: 12mm
Diâmetro do bit: Nqhqpq Tipo de superfície: Superfície Natural e Impregnada
Pacote de Transporte: caixa/caixa de madeira Especificação: BQ, NQ, HQ, PQ
Marca registrada: Melhor Origem: WuxiChina
Código HS: 82071910 Capacidade de produção: 50.000 unidades/ano
Destacar:

frontal discharge wireline core bit

,

impregnated diamond core drilling bit

,

HQ3 wireline core barrel bit

Diamond Tool Core Drill Bit for Geological Exploration Rock Coring Drilling with Type NQHQPQ
Product Description



Exploration is a very important way to identify if the rock contains any interesting minerals, also it can be used for construction industries,diamond core drilling is one of the common method to do such drilling and get the core samples from rock and soil, the samples will be sent for analysis. In the process of drilling, high performance bit is a key factor for scientific and professional drilling.
Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 0Product Features
High-Quality Materials: Our diamond drill bits are made from high-grade industrial diamonds, ensuring outstanding performance under various rock and geological conditions
Superior Cutting Performance: With advanced manufacturing techniques and scientific design, our drill bits possess excellent cutting abilities, efficiently penetrating hard rock layers and improving work efficiency.
Strong Durability: Our drill bits undergo rigorous quality control, featuring excellent wear resistance and impact resistance, which leads to a longer lifespan and reduced replacement and maintenance costs.
Diverse Options: We offer a variety of specifications and models of diamond drill bits to meet the needs of different geological exploration projects. Whether dealing with soft soil layers or hard rock formations, we provide the right drill bit for your project.
Product Parameters



Type AQ/B BQ/B NQ/B NQ3/B HQ/B HQ3/B PQ/B
O.D(mm) 47.7 59.6 75.4 75.4 95.7 95.7 122.3
O.D(inch) 1.88 2.35 2.97 2.97 3.77 3.77 4.81
I.D(mm) 27.1 36.5 47.7 45.2 63.6 61.2 85.1
I.D(inch) 1.07 1.44 1.88 1.78 2.50 2.41 3.35

Type PQ3/B NWM/B NWG/B NMLC/B HMLC/B NQTT/B HQTT/B
O.D(mm) 122.3 59.6 75.4 75.4 98.9 75.4 95.7
O.D(inch) 4.81 2.35 2.97 2.97 3.89 2.97 3.77
I.D(mm) 83 36.5 54.8 52.1 63.6 45 61.1
I.D(inch) 3.26 1.44 2.16 2.05 2.5 1.77 2.4

Detailed Photos

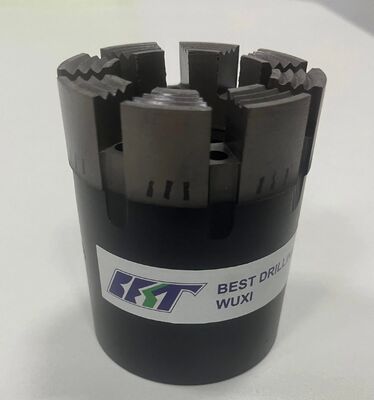

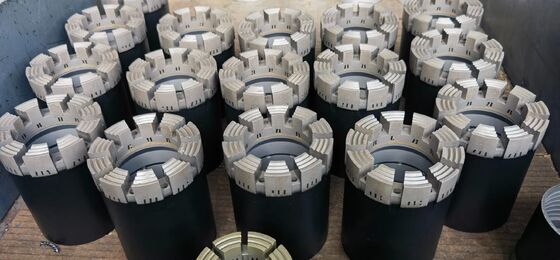

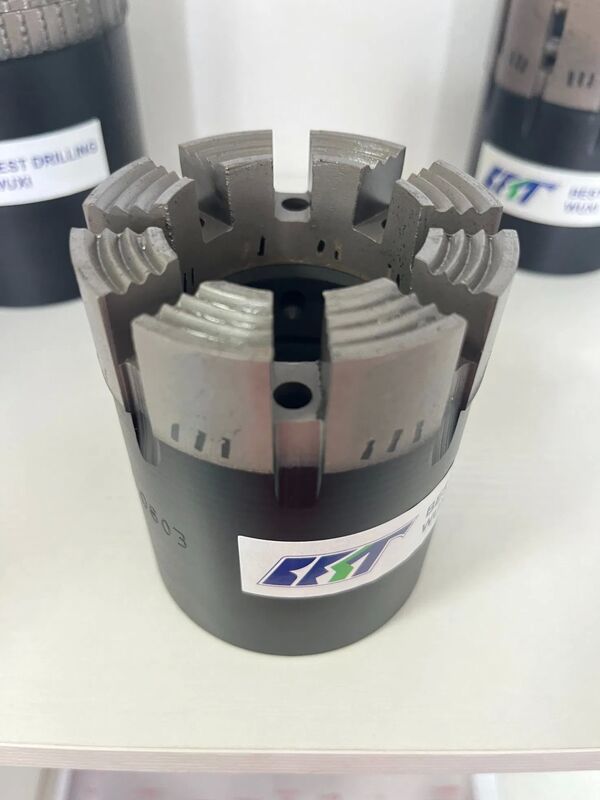

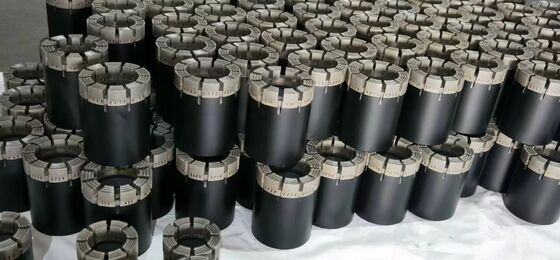

Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 1
Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 2

Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 3


Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 4Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 5
Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 6

Carbon bit choice chart

Rock Type
Rock Hardness
Abrasiveness
Hardness NO.

Clay,Shale,Ash Stone,Gypsum,Tuff,Serpentinite,Calcite,
Coal,Argillite,Volcanics,Sandly Pebble
Soft
Medium		 BST 1/3

Sandstone,Lithoid Limestone, Limonite
Medium Soft
Very High		 BST 3/5

Medium Hard Sandstone,Hard Shale,
Hard Ash Stone,Dolomitic,Marble,Hard Schist,
Hard Streak Stone,Siltstone,Andestite
Medium
High		 BST 5/7
Peridotite,Gneiss,Limonite
Medium Hard
Medium High		 BST 7/9

Pegmatite,Schist,Norite,Syenite,Gabbro,Peridotite,
Grandiorite,Granite,Basalt,Hard Streak Stone
Hard
Medium To Low		 BST 9/11
Amphibolite,Diorite,Rhyolite,Quartzite Very Hard Medium To Low BST 11

Silicious,Hard Sandstone,Rhyolite,
Dense Quartzite,Ironstone,Taconite,Jasperite,Chert
Utral Hard
Low		 BST 14

Company Profile

Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 7

Workshop
Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 8
Related Products



Diamond Core Bit
Casing Shoe
Diamond Reaming Shell
Drill Rod
Wireline core barrel assembly
Overshot assembly
Water Swivel
Hoisting Plug
Subs
Adapter coupling/locking coupling
Core lifter/core lifter case/stop ring
Wrench
Inner tube stabilizer
Landing ring
Core Barrels kit
Loading chamber
Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 9
Packaging & Shipping



Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 10
Field Work
Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 11
Exhibition



Hq3 Frontal Discharge Bit for Wireline Core Barrel Drilling 12
FAQ



Q1. Where is your factory?
A1: Our factory is located in Wuxi, Jiangsu, China, it takes only about 2 hours driving from Shanghai.

Q2. How do you control quality?
A2: ISO9001 has been passed. Mill Test Certificate is supplied , meanwhile the Third Party Inspection is available according to customers' requirement.

Q3. What are the advantages of your company?
A3: We have many professionals, technical personnel, more competitive prices and best after-sales service than other companies.

Q4. Can you arrange the shipment?
A4: Yes, of course, we have our forwarders which has cooperated with us for years.

Q5. How about the delivery time?
A5: It will be decided by the orders. Normally within 3 days after receiving your advance payment if we have stock.

Q6. Can you provide sample?
A6: Small samples in store can be provided for free.
